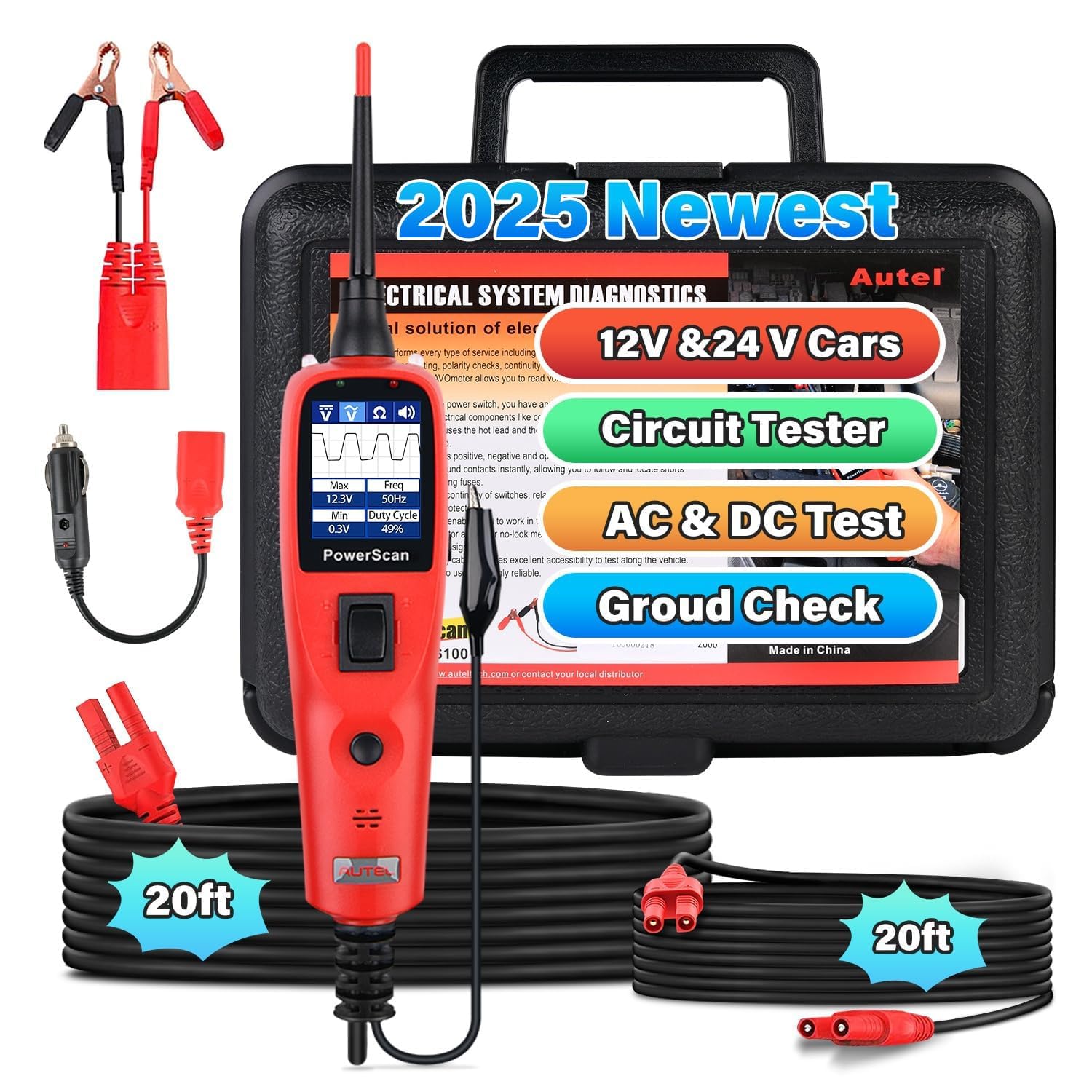

Autel PowerScan PS100 Automotive Circuit Tester, Universal 12V 24V Power Circuit

Product Description

AUTEL POWERSCAN -UNIVERSAL CIRCUIT TEST TOOL FOR ALL 12V-24V POWER SOURCES!

WHY DO YOU NEED A CIRCUIT TESTER?

The Autel Circuit Test Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, short circuit finder, relay/component tester, continuity tester and ground check, it’s the ultimate and easiest choice to check circuitry and electrical system for every technician and home mechanic.

1 4 Work Modes

2 Component Activation

3 Short &Ground Check

4 Polarity &Continuity Test

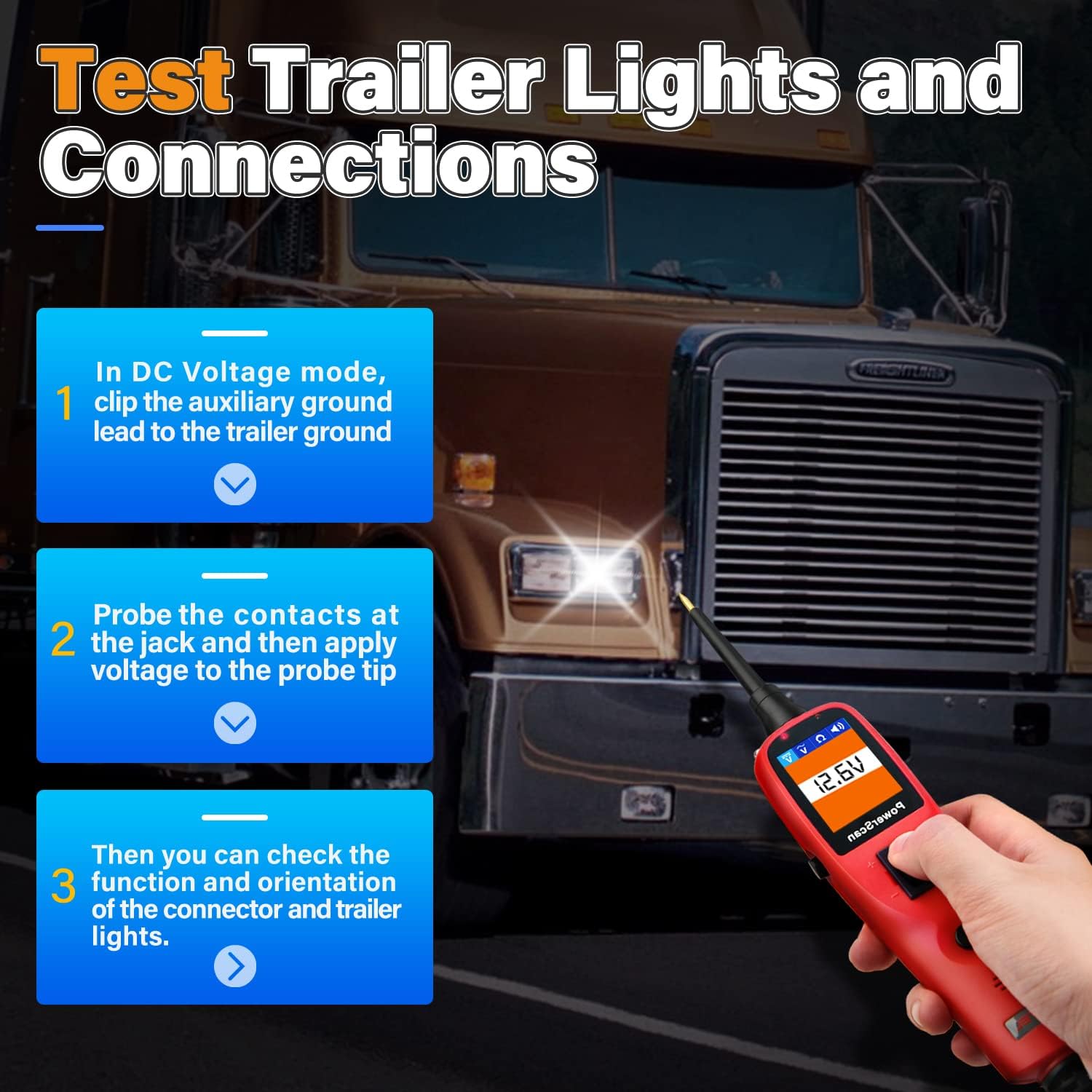

5 Trailer Light &Connection

AUTEL POWER CIRCUIT PROBE KIT-EASY TASKS WITH DELICATE DESIGN

UNIVERSAL ELECTRICAL TESTER FOR ALL CARS/MACHINERY: MULTI APPLICATION SCENARIO!

100% ORIGINAL AUTEL CIRCUIT TESTER

DC Voltage Range 0-65V +1 Digit Resistance Range 0-200 KΩ Frequency Response Tone Raneg 0Hz-10Khz Rating Current 1-10 Amp Display TFT (160 x 128 dpi) Operating Temperature 0-60°C (32-140 F°) Storage Temperature -40-70°C (-40-185 F°) External Power 12.0 or 24.0V Power Provided via Vehicle Battery

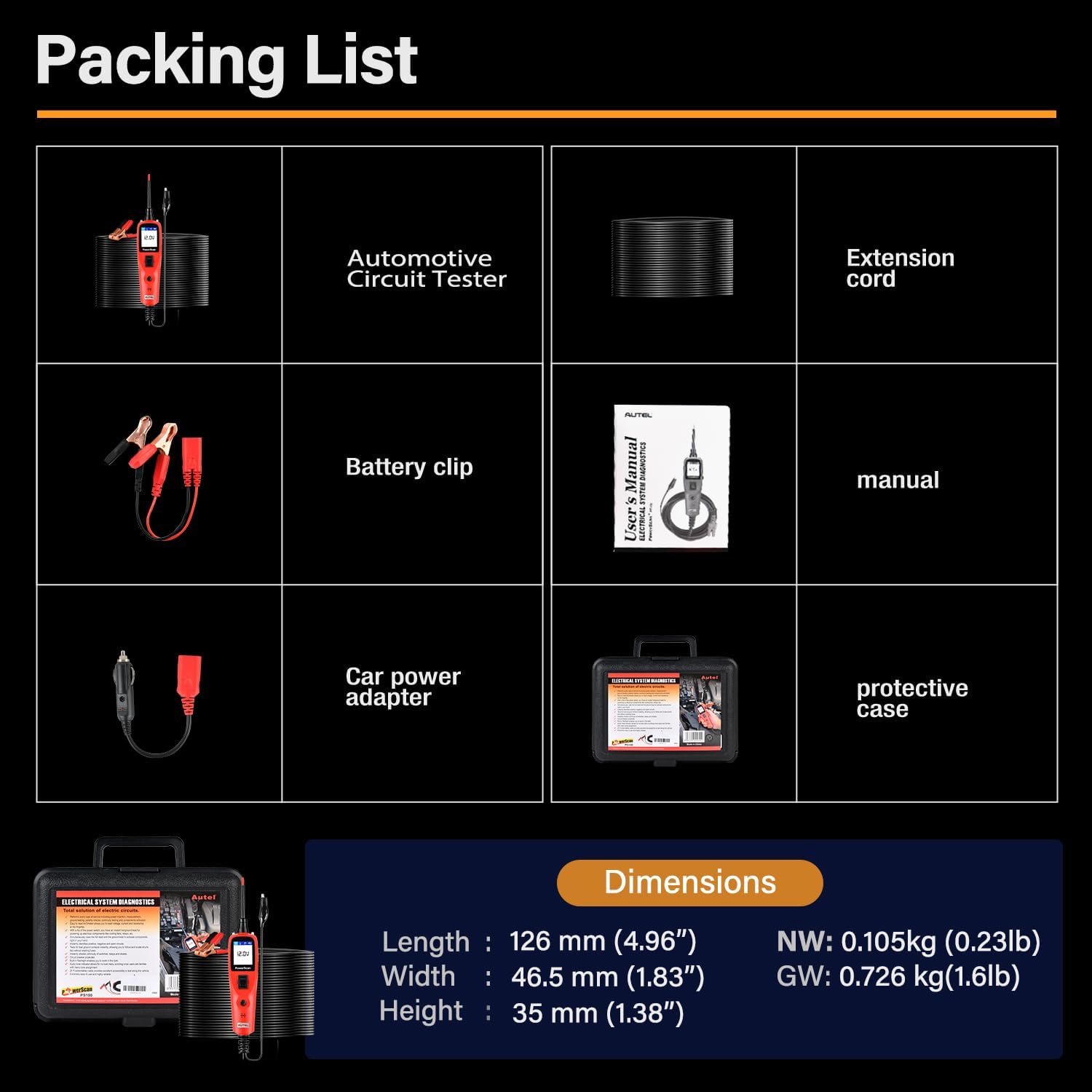

Product Dimensions ‏ : ‎ 1.18 x 1.18 x 0.39 inches; 2.78 Pounds
Item model number ‏ : ‎ A-M017-00-US
Selling Start Date ‏ : ‎ February 17, 2024
Manufacturer ‏ : ‎ Autel
Stock number ‏ : ‎ TSBW48DKFG

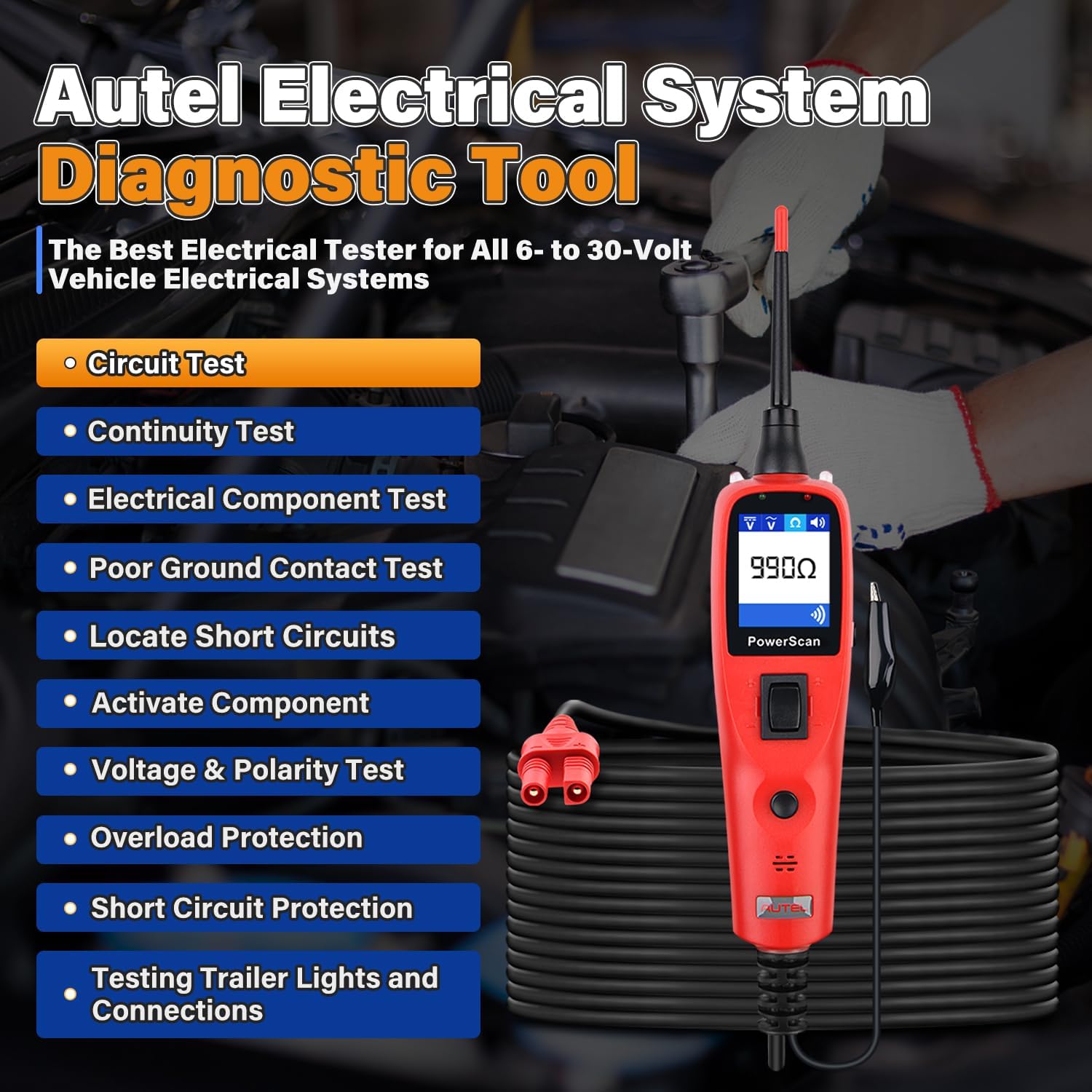

👍【2025 Autel New Release Multi-function Power Circuit Probe Kit】Autel PowerScan PS100 is the best Electrical Tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle’s battery, you can: ✅Test Voltage & Polarity/ Continuity/Signal Circuit✅Activate Components in Your Hand & in the Vehicle & w/Ground✅Test Trailer Lights and Connections✅Find Bad Ground✅Find Short Circuits✅Red/Green Polarity LED.

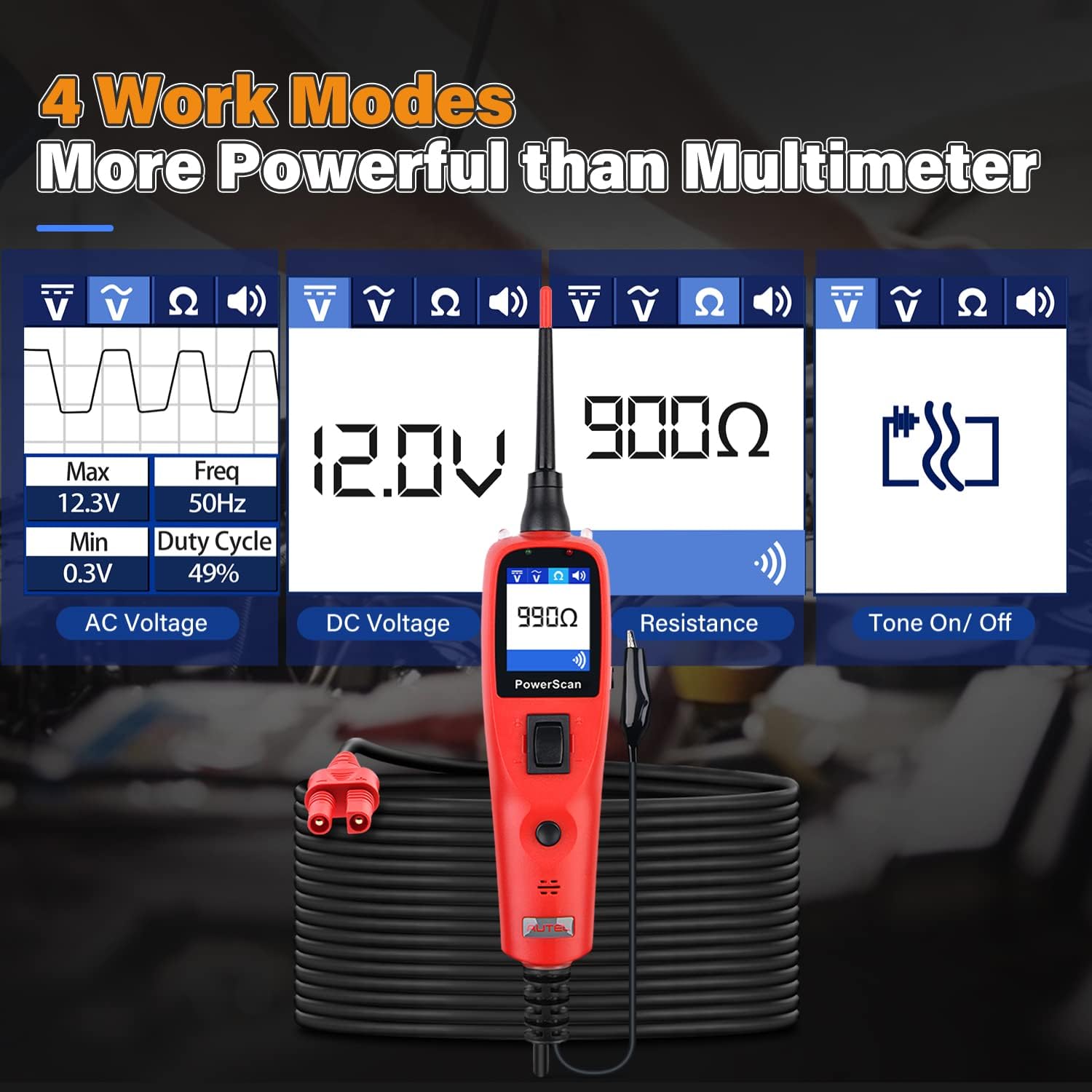

👍【4 Advanced Working Modes】4 advanced modes can be accessed by depressing the Mode Button and cycling through each one: ➊DC voltage: read the DC voltage with a resolution of 0.1 volts. ➋AC voltage: read the Max. voltage, the Min. voltage, frequency, and duty cycle. ➌Resistance: read the resistance between the tip and auxiliary ground lead. ➍Tone On/Off: technicians use the tone in a dark environment to distinguish the test results and turn it off when unnecessary.

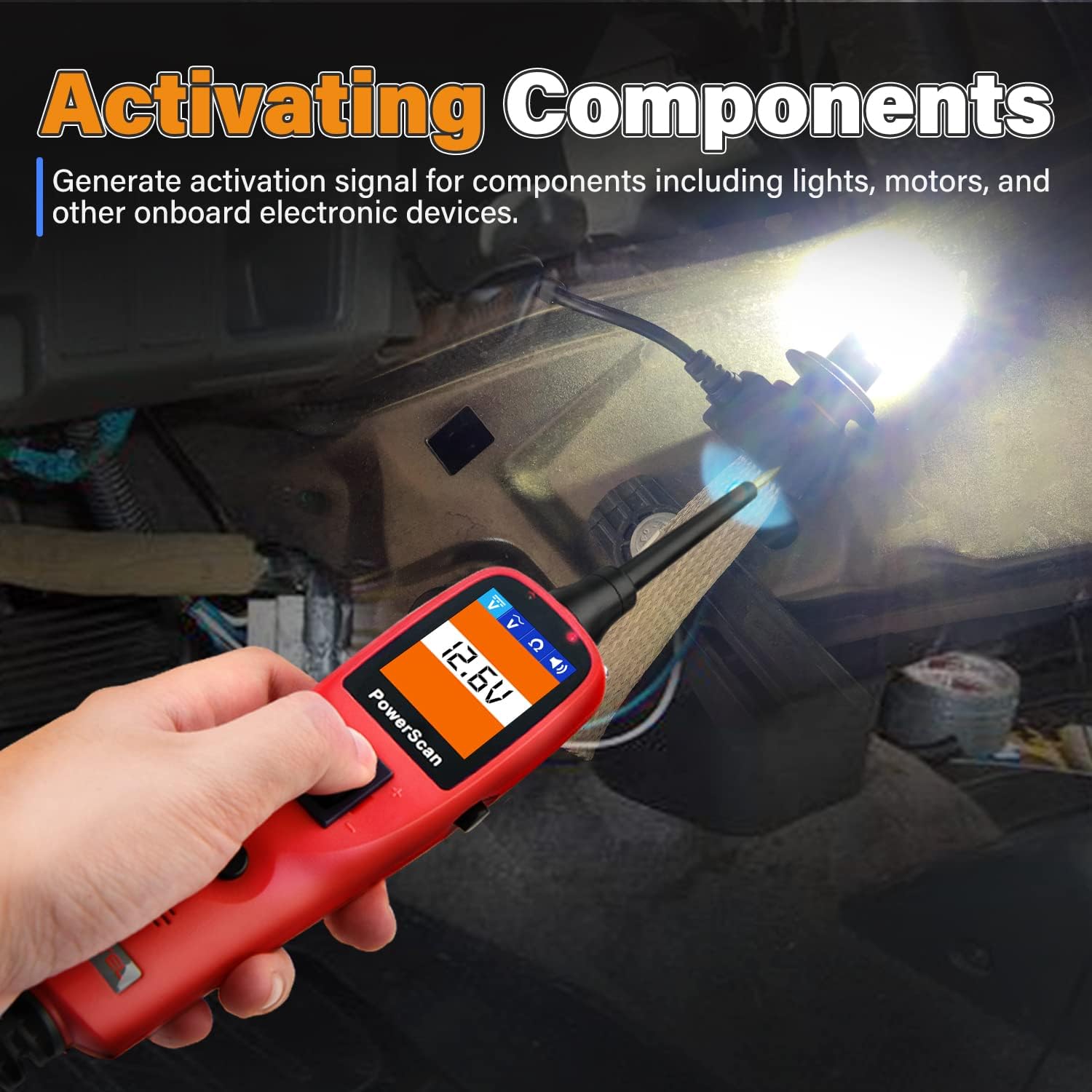

👍【Compnent Activation Function】Autel PS100 Electrical System Tester will test the positive, negative, and open circuit easliy, also testing for continuity, diagnosing circuit failures, checking good and bad grounds, easy to read AC/DC current activating components on and off the vehicle, sensing MIN /MAX voltage, etc. By generating activation signals for the components, Autel Circuit Tester Automotive Tool can judge whether the components are in good condition, such as lights, motors, wipers, radiator fans, relays, etc.

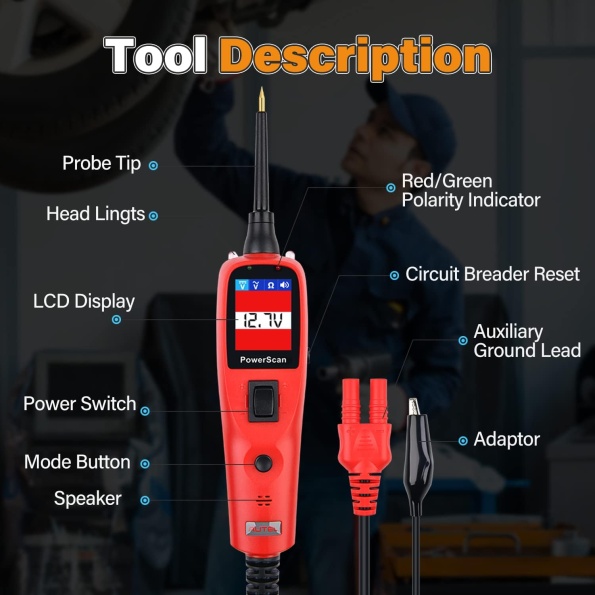

👍【Quickly Identify Polarity & Highly Sensitive Probe】Autel PS100 Automotive Circuit Tester instantly checks component continuity and identifies positive, negative and open circuits. When the positive terminal is connected, the red LED light is on, accompanied by a beep. When the negative terminal is connected, the green LED is on, along with low pitched tone. If it is an open circuit, the LED light will not light. Besides, sharp stainless steel probe for piercing wires effortlessly, also for hard to reach tight areas.
👍【Overload Protection & Quick Self Test】10 Amp Circuit Breaker built-in to protect the tool from overload. The circuit breaker will trip if it becomes overloaded to protect the battery and give a buzzer warning. When the circuit breaker is tripped, the Electrical Probe Tester will NOT be able to conduct battery current to the tip even when the power switch is pressed. Besides, Autel PowerScan PS100 Car Circuit Tester has quick self test function, which can ensure the tester is in good condition before use.

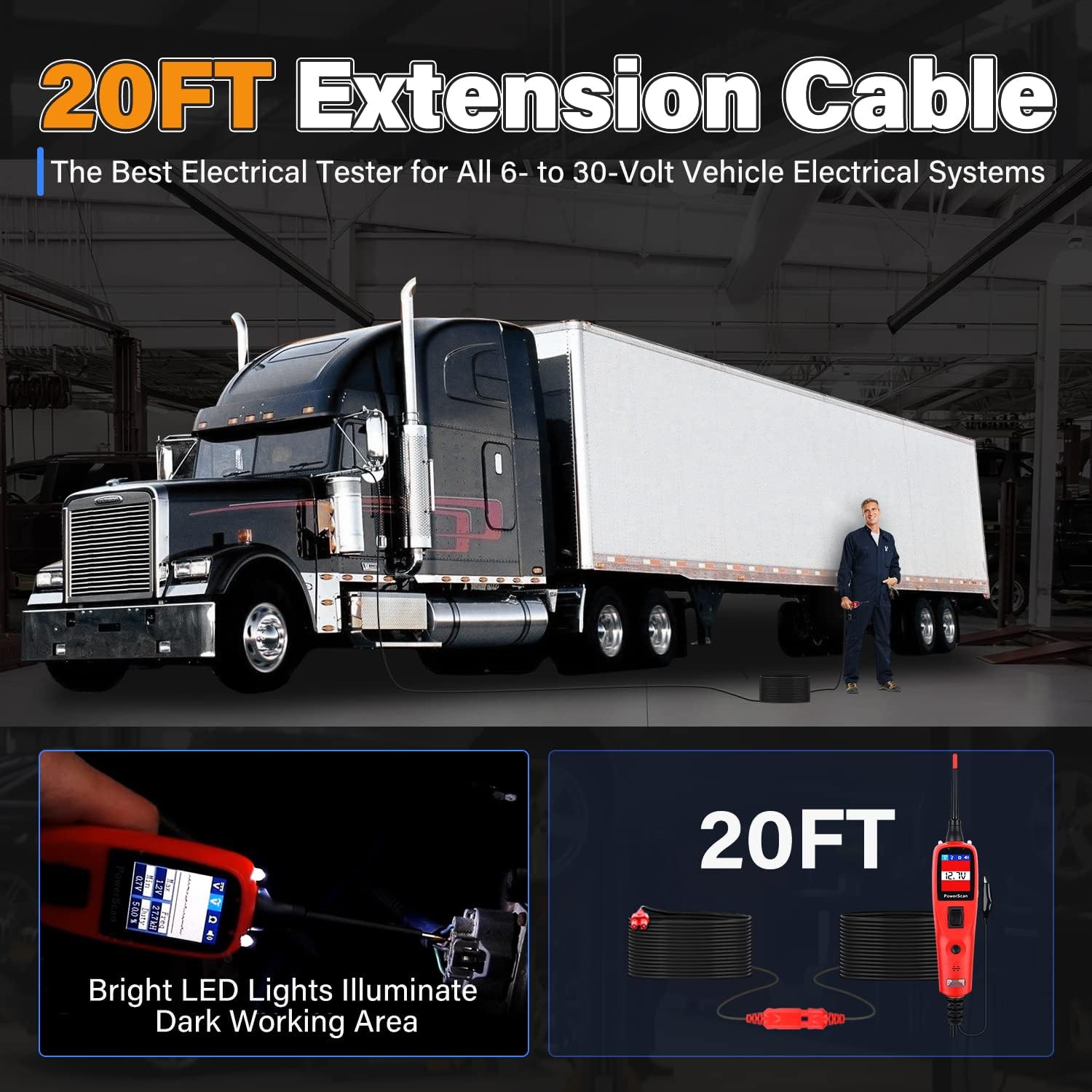

👍【20FT Cable + 20FT Extension Cable】Unlike the power probe, Autel PS100 Automotive Power Circuit Probe Tester comes with 20 feet long cord plus 20 feet extension cord. Combining the feature that it can be powered by the ci*gare.tte li*ghter, and alligator clip for convenient ground connection, you can test electrical circuit system anywhere around the longer vehicles and trailers.
👍【Dual Head Lights & Intuitive LCD Backlit Digital Screen】To be a proper solution for nighttime testing jobs, the Electric Test Pen comes with a lighting function to support your testing needs in a low-light environment. What’s more, this PS100 Circuit Light Tester with highly clear LCD digital backlit display screen, a resolution of 0.1V, clear&visible digital readouts for day and night. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip.
👍【Powerful than Multimeter & Test Light】More Data than a Test Lights: Compared to the test light that only displays DC voltage, Autel AC DC Digital Voltage Short Finder can also display AC voltage, resistance, and diode. More Functions than a Multimeter: simply select the diagnostic mode by pressing the mode button, then touch the probe tip to a circuit. The LCD will display the DC /AV voltage, resistance. Autel Power Circuit Tester Tool can help find the cause to the problem quicker than using a multimeter.
👍【Rank #1 Recommended by Auto Electrical Specialists】Autel PowerScan PS100 probador de corriente automotriz is one of the most versatile Automotive Electrical Tools available on the market and Recommended by Countless auto electrical specialists. It accomplishes everything that P.P.3/P.P.4 does for half the price! Besides, Autel Electrical System Probe Tester provides 30-day f*ree r*efunds & ex*changes, 1-year w*arranty, 24/7 professional customer service. If you have concerns about the automotive electrical tester, please contact us for help first to solve it. We will help you till are satisfied.
